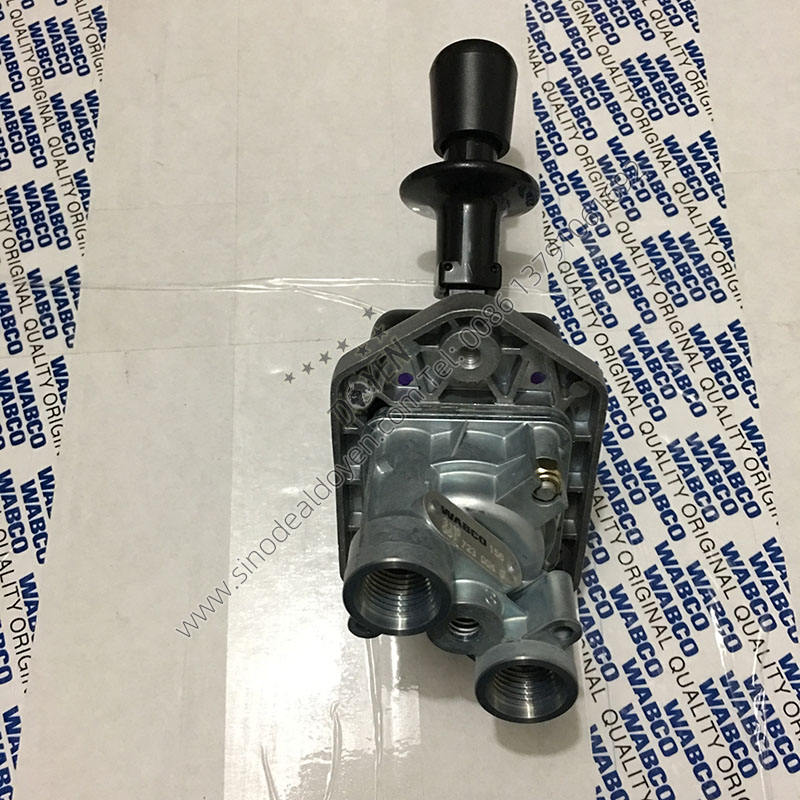

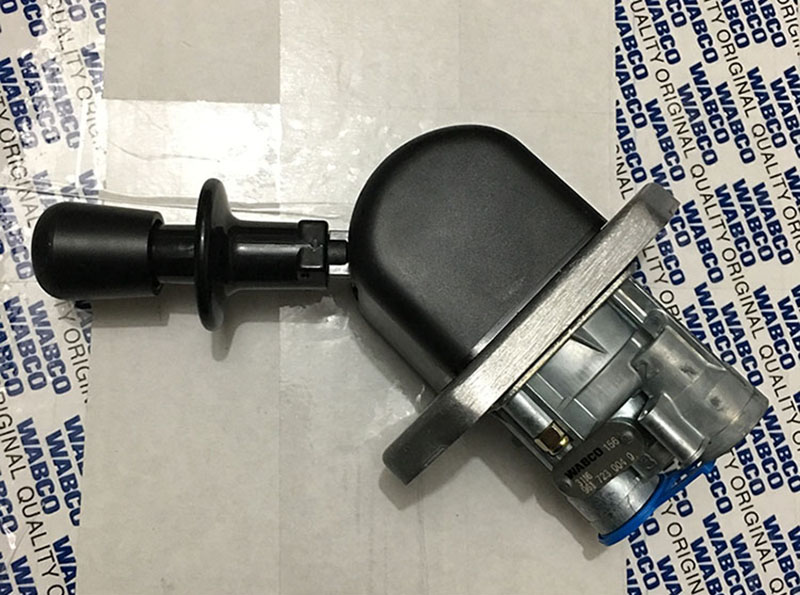

WABCO 9617230040 hand brake valve

Brand WABCO Original
Part type Premium original quality
Technical Specification OE specification
Actuation Angle 85°
Color Black
Distance between holes 80 mm
Exhaust Flap
Max. operating pressure 10.0 bar
Mounting M6
Port thread 1 M16 x 1.5 JED - 464
Port thread 21 M16 x 1.5 JED - 464
Port threads M16 x 1.5 VOSS
Temperature range -40°C to +80°C
Calculated Volume (dm³) 1
GTIN 7895851062283
Size (mm x mm x mm) 161 x 111 x 63
UPC 193133449225
Weight (kg) 0
UPC 193133450634
Weight (kg) 1

Replaces
Alexander Dennis 9617230040
DAF 1505331
FAW S350802011Z
FOTON 1315035300005
KENWORTH S9617230040
Kinglong 35G4226010
MERITOR S9617230040
PACCAR 1505331
PETERBILT S9617230040
SCANIA 1935564
VOLVO 6702610
VOLVO 6792610
VOLVO 679261
VOLVO 6775595
YUTONG 352600006A
