STEYR

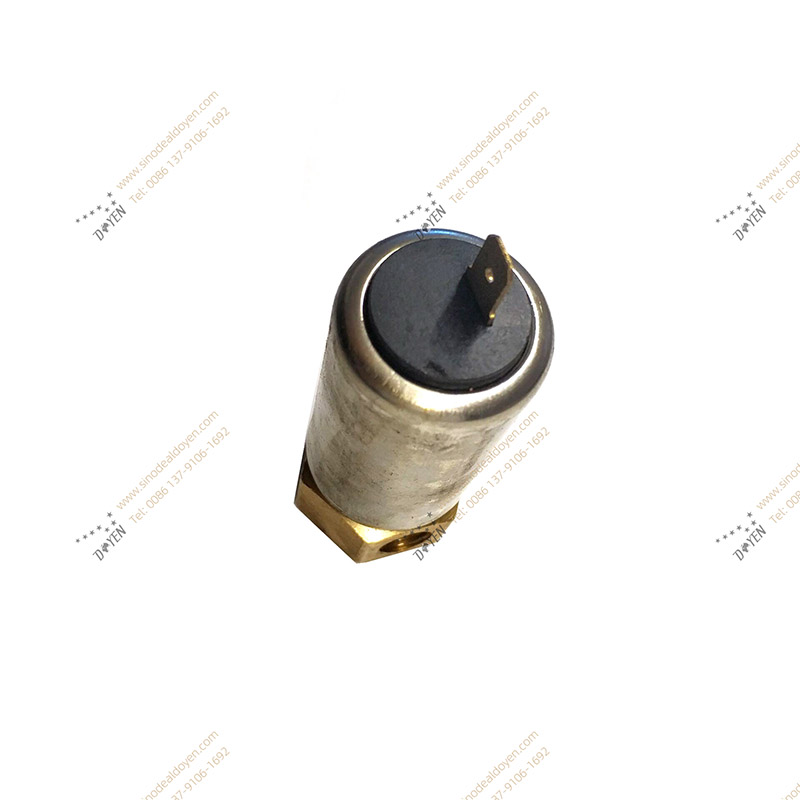

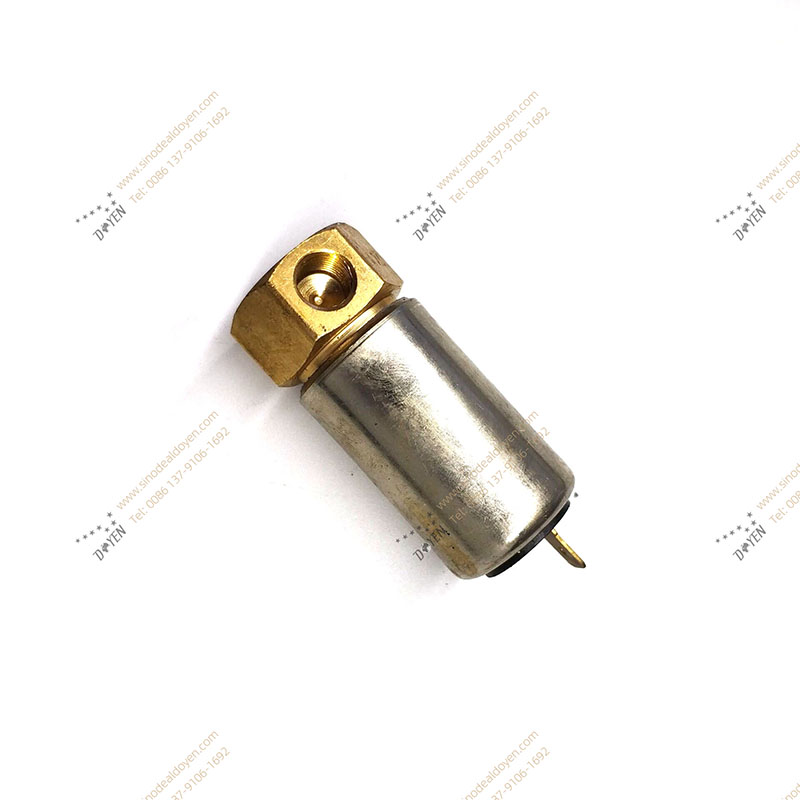

STEYR WD615 61200090163 flame starting magnetic valve
item No: 61200090163
original STEYR 61200090163
FLAME STARTING SYSTEM, WD615
1 AZ1500090132 temperature sensor 1
2 61200090163 magnetic valve 1
3 61200090162 flame starting plug 1
4 61560080154 fuel pipe 2
5 61200080159 fuel pipe 1
6 81560080212 hollow bolt 1
7 9000362607 hollow bolt 2
8 90003962621 hollow bolt 1
9 609E110070 connecting bolt 1
10 79000770116 flat plug 1
11 81560080327 pipe 2
12 99014280016 bushing 2
13 99012360441 angle type support 1
14 90003802415 hexagon bolt 1
15 90003932023 elastic pad 1
16 90003930261 flat pad 1
17 90003802307 hexagon bolt 2
18 90003559516 nut for pipe joint 4
19 90030559506 nut for connecting 2
20 90003559462 joint 2
21 90003559561 sleeve 4
22 90003559557 sleeve 2
23 90003931082 spring pad 2
24 90003098029 sealing pad 2
25 90003098010 sealing pad 7
26 90003098010 sealing pad 1
27 90003098015 sealing pad 2
28 90003171697 clipping band 4
29 90003960005 hexagon screw 2
30 90003962014 hexagon bolt 1
31 AZ1500080155 fuel pipe 1
