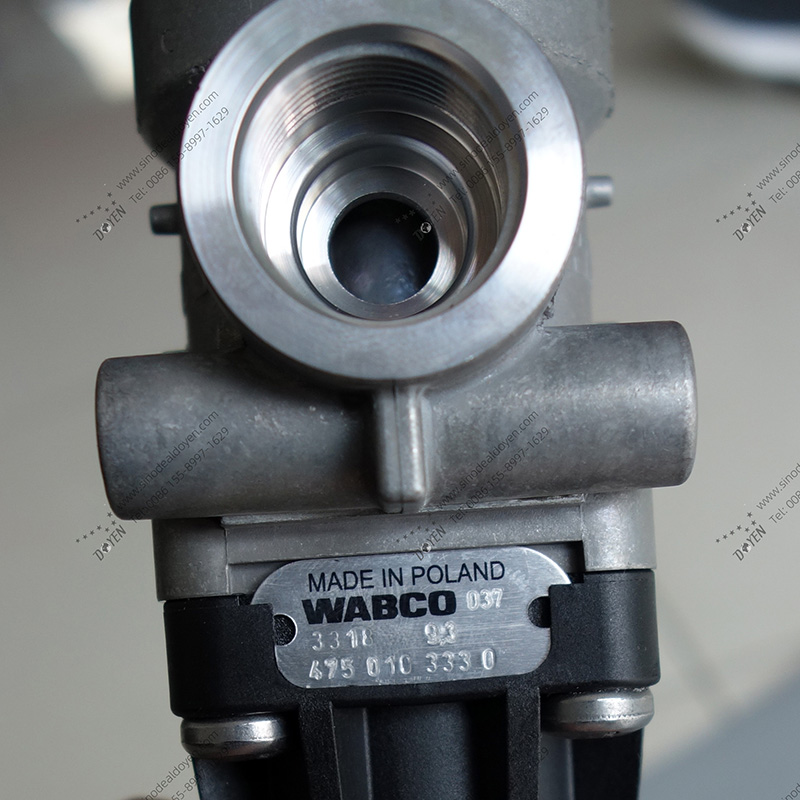

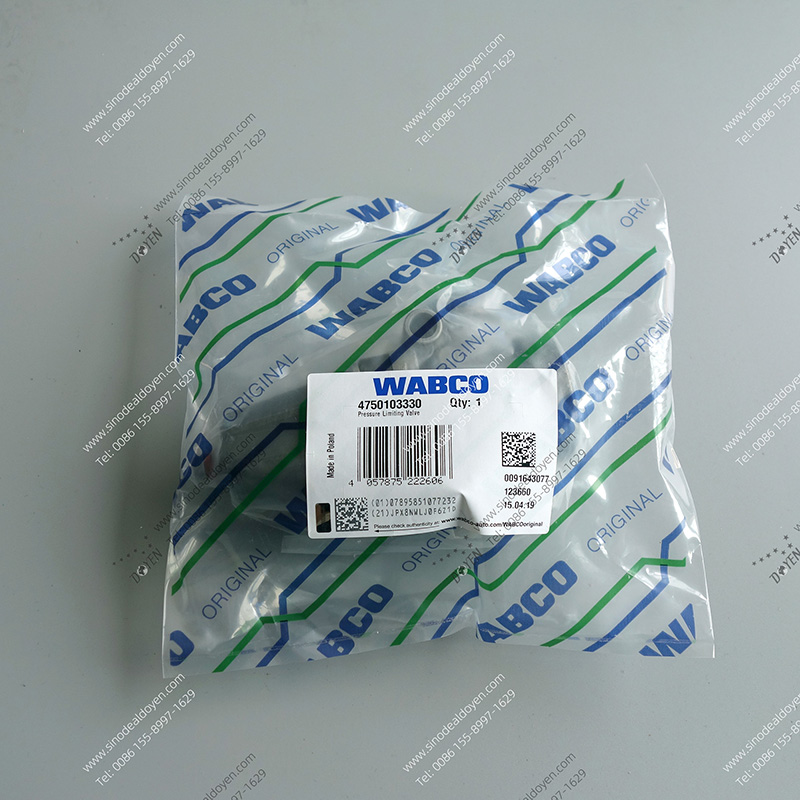

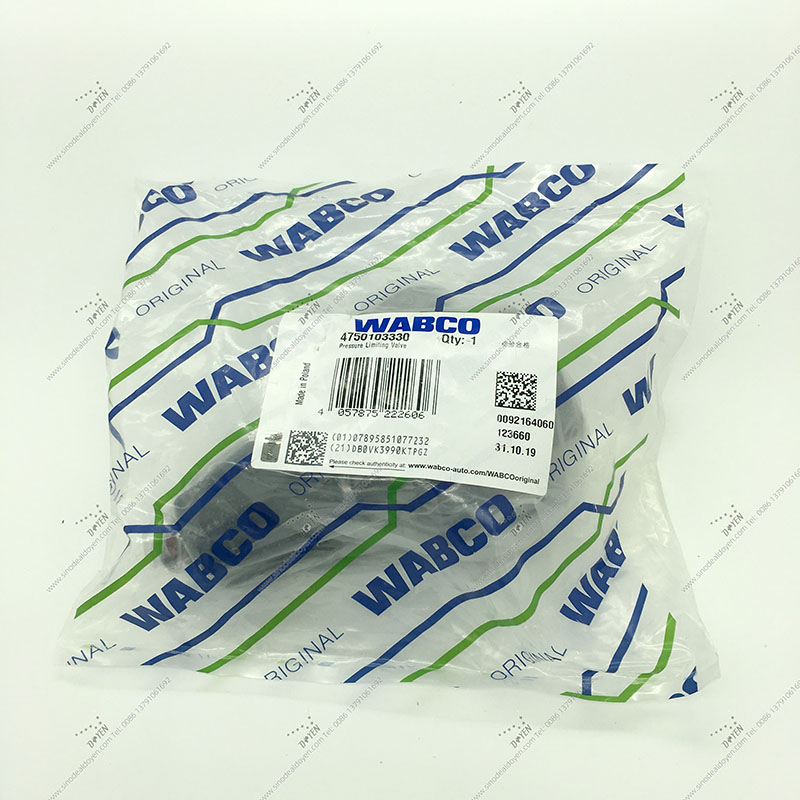

Wabco 475 010 333 0 Pressure Limiting Valve 4750103330
WABCO Pressure Limiting Valve 475 010 333 0
Material Number: 4750103330
Size (mm x mm x mm) 139 x 85 x 55
Weight (kg) 0.363
GTIN 04057875222606
4750103330 Wabco Pressure Limiting Valve
MAN part number:81521016295
applied to:
- MAN TGA200003 - /
- MAN TGL200504 - /
- MAN TGM200510 - /
- MAN TGX200709 - /
- MAN TGS200708 - /
- MAN FOCL
Technical Specifications
Brand WABCO Original
Part type Premium original quality
Technical Specification
OE specification
Delivered pressure 9.3 at p1 = 12.5
Distance between bolts 56 mm
Exhaust Ø 4 mm
Max. operating pressure 20 bar
Mounting 2x Ø 8.6 mm
Port thread 1 M22 x 1.5
Port thread 2 M22 x 1.5
Temperature range -40°C to +80°C
Calculated Volume (dm³) 1
GTIN 4057875222606
Size (mm x mm x mm) 139 x 85 x 55
Weight (kg) 0.363
WABCO 4750103330
Replaces
MAN 81521016295
NEOPLAN 81521016295
