WABCO

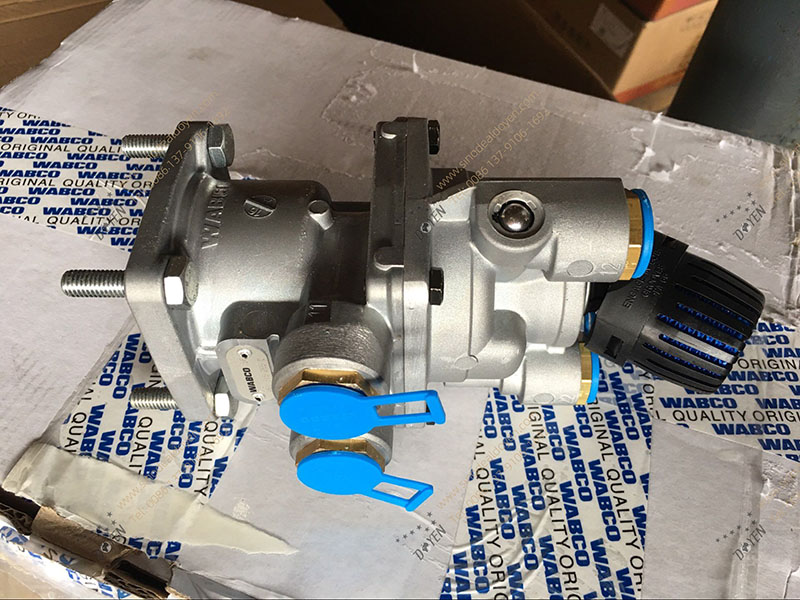

WABCO 4613152650 foot control valve
item No: 4613152650
ORIGINAL WABCO 461 315 265 0
4613152650 WABCO FOOT CONTROL VALVE
Size (mm x mm x mm) 88 x 207 x 106
Weight (kg) 1.198
GTIN 04057875208921
4613152650 WABCO FOOT CONTROL VALVE
|
Part type
|
Premium original quality
|
|
|
Technical Specification
|
OE specification
|
|
|
Distance between holes
|
61 x 61 mm
|
|
|
Exhaust
|
Silencer
|
|
|
Max. operating pressure
|
12 bar
|
|
|
Mounting
|
4x M8
|
|
|
Nominal diameter
|
10 mm
|
|
|
Port thread 11
|
M22 x 1.5
|
|
|
Port thread 12
|
M22 x 1.5
|
|
|
Port thread 21
|
M22 x 1.5
|
|
|
Port thread 22
|
M22 x 1.5
|
|
|
Predominance
|
0.5 bar
|
|
|
Temperature range
|
-40°C to +80°C
|
|
|
Calculated Volume (dm³)
|
1.9309
|
